Vector Trailer Refrigeration Unit With Turbo
Engine Technology

Overview

Vector Trailer Refrigeration
Unit

Advanced Turbo Diesel
Engine

Vector With Turbo Diesel
Technology

Greater Power For Future Needs

Export Power

Fleets requesting power provided by Vector generator to be used for value-added, (non-refrigeration) functions

Natural Refrigerants

Low Global Warming Potential (GWP) refrigerants such as Carbon Dioxide (CO2) operate at higher pressures, requiring more power

Higher Capacity

Fleets pushing for longer, lighter weight trailers (i.e. less well-insulated) to improve freight efficiency

Higher Performance

In “intensive use” applications using auto start/stop, systems with higher performance will better control temperature while also reducing run time, emissions and overall costs

Engine Detail

  • Kohler Engine
  • 1.9 liter
  • 3-cylinder
  • Turbocharged
  • Up to 56 horsepower (42kW)
  • High pressure common rail
  • Diesel oxidation catalyst
  • Exhaust gas recirculation
  • Geared timing
  • CAN BUS electronic controls

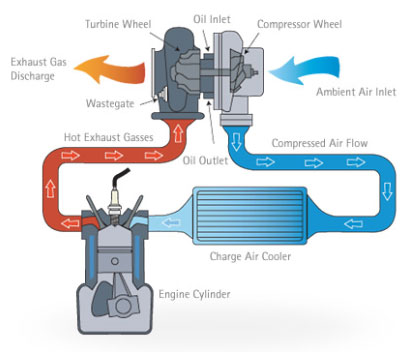

Turbo Benefits

  • More power
  • Smaller displacement
  • Better fuel efficiency
  • More complete combustion (i.e., lower emissions)
  • Greater than 25 horsepower Tier 4 Final compliant (i.e., indefinite use in California)
  • ~5 year development & testing
  • ~100,000 hours field operation

Advanced Technology Engine

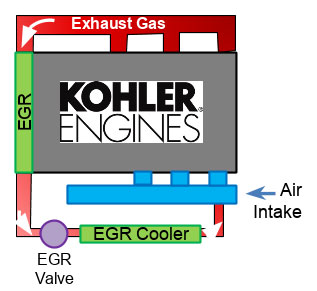

  • Hot exhaust gas passes from exhaust manifold into cylinder head to be partially cooled by engine coolant
  • If EGR is needed, EGR valve opens and allows EGR into cooler, then into engine
  • No maintenance to EGR cooler due to EGR valve being placed before the cooler

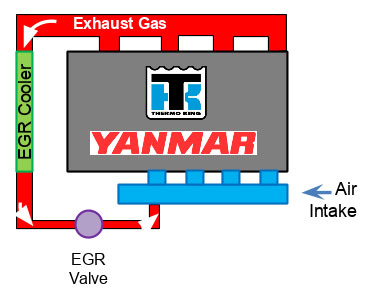

  • Hot exhaust gas passes from exhaust manifold into EGR cooler
  • EGR valve opens when EGR is needed, allowing cooled EGR into the engine
  • EGR cooler fouls over time (clean every 3,000 hours) due to EGR valve being placed after EGR cooler (allows exhaust cool in EGR even when not needed in engine)

Differences in Vector Unit

[image_mapper id=”7″]

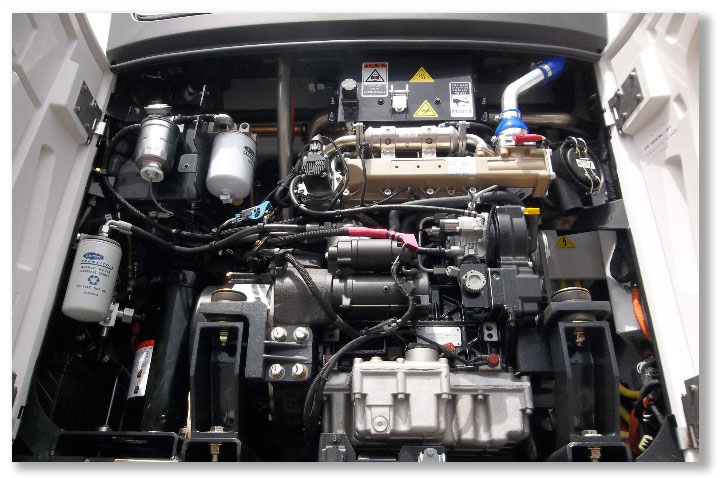

Vector Turbo Engine

Engine Comparison

Greater Than 25 HP Less Than 25 HP
Carrier Kohler Thermo King Yanmar Thermo King Peugeot Thermo King Yanmar
Displacement 1.9 liter 2.1 liter 1.6 liter 2.2 liter 2.1 liter
# cylinders 3 4 4 4 4
Design type Industrial Industrial Automotive Automotive Automotive
Timing Drive Gear Gear Timing Belt Gear Gear
Head / Block construction Cast Iron Cast Iron Aluminum Cast Iron Cast Iron
Fueling 2000bar CR 1600bar CR 2000bar CR Mechanical Mechanical
High Speed RPM 1,850 2,050 2,050 1,800 2,200
EGR Yes Yes Yes No No
Turbo Yes No Yes No No
DOC Yes Yes Yes No No
California >7 years Yes Yes Yes Yes with EES (DPF) No DPF available

Vector Performance Compare

Standard Vector Turbo Engine Vector
Cooling Capacity BTU/hr in 100°F ambient Diesel Engine Electric Standby Diesel Engine Electric Standby
35°F setpoint 60,000 60,000 59,000 60,000
0°F setpoint 35,000 35,000 35,000 35,000
-20°F setpoint 24,000 24,000 24,000 24,000
Fuel Efficiency
Part load: 35°F setpoint, 75°F ambient continuous run operation 0.51 GPH n/a 0.50 GPH n/a
Part load: -10°F setpoint, 75°F ambient continuous run operation 0.55 GPH n/a 0.52 GPH n/a
Full load: 35°F setpoint, 100°F ambient continuous run operation 1.10 GPH n/a 1.10 GPH n/a
Full load: 0°F setpoint, 100°F ambient continuous run operation 0.94 GPH n/a 0.97 GPH n/a
